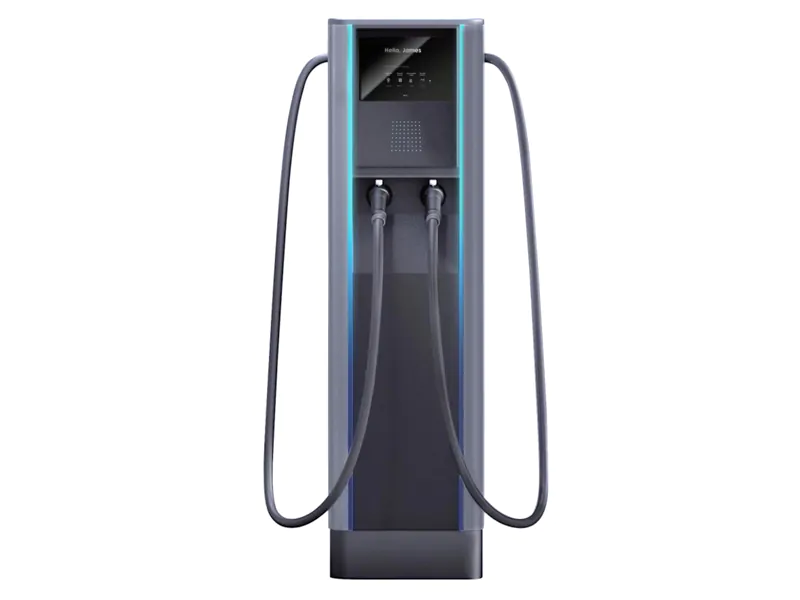

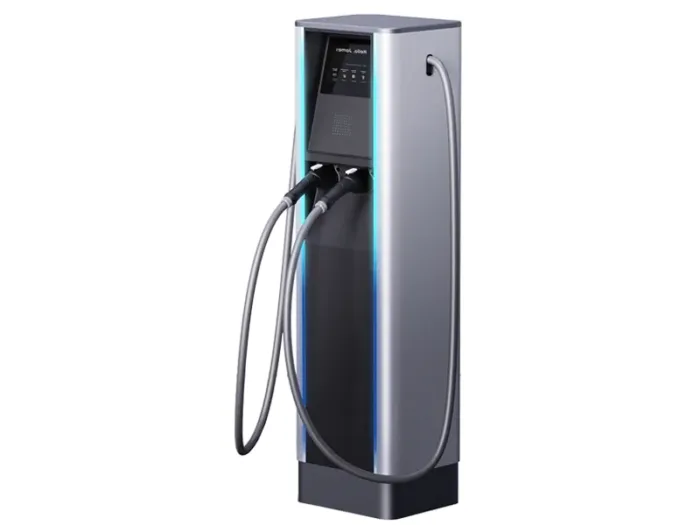

YDCHARGE DC22D Series Dual Port AC Charging Station
A high power dual port AC EV charging station engineered for commercial plus fleet and property charging applications.
The YDCHARGE DC22D Series combines up to 2 x 22kW simultaneous charging plus a 7 inch touch LCD and RFID access control plus dynamic load balancing and optional 4G Wi Fi LAN OCPP connectivity in one floor mounted platform. Designed for high traffic charging sites it delivers strong single point coverage plus flexible deployment and a premium user experience for public and semi public charging environments.
Dual Port Charging
Supports 2 x 11kW or 2 x 22kW simultaneous AC charging through dual Type 2 outputs for maximum site utilization and efficient fleet energy distribution.
Smart Interaction
Equipped with a 7 inch touch display plus RFID access control and real time metering as well as high visibility LED status indication for intuitive operation.
Cloud Management
Optional OCPP plus Wi Fi 4G and LAN connectivity for remote operation plus diagnostics and seamless third party backend platform integration.
Outdoor Durability
IP55 rated enclosure with a wide operating range from Negative 25 C to 50 C plus 7 meter integrated cables for reliable outdoor deployment.
YDCHARGE DC22D Series Dual Port AC Charging Station
The flagship high coverage charging asset for commercial plus public and fleet environments.
The YDCHARGE DC22D Series is a dual port AC EV charging station developed for high traffic locations. Designed as a high coverage charging asset it supports simultaneous dual output charging of up to 2 x 22kW making it an ideal solution for sites that need to serve two parking spaces with one installation point.
With one charger body plus one power connection and one managed installation point operators can significantly improve parking space utilization while reducing infrastructure duplication. This platform is especially attractive for commercial real estate plus office buildings and hospitality projects or fleet depots and high end residential developments.
Higher Site Efficiency via Dual Port Architecture
The DC22D Series is built around a core commercial advantage: single point dual vehicle coverage. Available in 2 x 11kW and 2 x 22kW versions the station enables simultaneous AC charging through dual Type 2 outputs helping customers serve more vehicles without doubling installation footprint.
For operators and property owners this improves both charging convenience and site ROI. One device can support two charging sessions at the same time making it easier to optimize available parking infrastructure in space constrained projects.
7 Inch Touch Display for Premium Interaction
Unlike basic charging stations with only LED indicators the DC22D Series includes a 7 inch touch LCD that delivers a complete user experience. The display supports a clearer interface for:
- Real time power and energy data
- Detailed charging session information
- Fault and status indication
- Branded user guidance and interaction flow
Dynamic Load Balancing (DLB)
One of the most commercially important functions is support for DLB via CT Clamp with a working range of 6A to 32A. This allows charging power to be adjusted dynamically based on available site capacity.
B2B customers can often deploy chargers without major electrical upgrades helping reduce transformer load pressure and making better use of existing infrastructure assets.
RFID Access and Cloud Connectivity
Supports RFID based access control for workplaces and managed commercial environments. Communication configurations include:
- OCPP for backend platform integration
- 4G LTE plus Wi Fi and LAN options
- Mobile app integration for smart operation
- Remote diagnostics and OTA management
Built for Daily Outdoor Commercial Use
Designed for reliable operation in demanding environments with industrial grade protection and structural integrity:
- IP55 protection level
- Operating range from Negative 25 C to 50 C
- Natural cooling and humidity management
- 7 meter heavy duty integrated cables
The 7 meter cable offers more flexibility in real parking layouts improving usability in spaces where vehicle positions are not perfectly aligned.
Mechanical Design and Global OEM Support
Floor mounted form factor 378 x 320 x 1362 mm suitable for public areas plus office parking and retail sites. For OEM and ODM projects support includes:
- White label branding and custom housing
- Customized UI and firmware logic
- Project based feature planning
- Market specific communication configurations
- Global supply and deployment support
YDCHARGE DC22D Series Technical Specifications
| General and Application | |
|---|---|
| Product Name | YDCHARGE DC22D Series Dual Port AC Charging Station |
| Product Type | Floor mounted dual port AC EV charging station |
| Application | Commercial plus public and fleet or premium residential charging |
| Standards | IEC EN 61851 1:2019 plus IEC EN 61851 21 2:2021 plus EN 60335 1:2012+A15:2021 plus EN 60335 2 65:2003+A12:2022 |
| Electrical and Power Performance | |
| Charging Mode | AC charging |
| Output Configuration | Dual Type 2 simultaneous charging |
| Available Models | 2 x 11 kW plus 2 x 22 kW |
| Max Output Power | Up to 2 x 22 kW |
| Max Current | 16A 32A three phase |
| Voltage and Input | 400 V AC +/- 15 % plus 3Ph + N + PE (L1, L2, L3, N, PE) |
| Frequency | 50 60 Hz |
| Interaction and Intelligence | |
| Display | 7 inch touch LCD |
| Access Control | RFID plus App optional |
| Communication | Wi Fi plus 4G plus LAN plus OCPP |
| Dynamic Load Balancing | CT Clamp (6A to 32A) |
| Metering and Status | Energy meter plus LED status and fault indicators |
| Hardware and Mechanical | |
| Protection Grade | IP55 |
| Operating Temp and Humidity | Negative 25 C to 50 C plus 5 % to 95 % non condensing |
| Altitude and Cooling | Below 2000 m plus Natural cooling |
| Cable Length | 7 m integrated cables |
| Product Dimensions | W 378 x D 320 x H 1362 mm |
| Packaging Dimensions | W 400 x D 460 x H 1442 mm |
| Weight | Net: 25 kg plus Gross: 27 kg |
