Understanding the Limits and Possibilities of Mode 2 EV Charging
How much power can a portable Mode 2 charger actually deliver? An engineering deep-dive into standards, power limits, and global safety requirements.
In-Cable IC-CPD Control
Single & 3-Phase Portable
Max 22 kW Output
As electric vehicles (EVs) continue to gain market adoption worldwide, the demand for flexible, safe, and efficient charging solutions has surged. Among portable charging options, the Mode 2 portable EV charger has become an essential accessory—especially for personal emergency use, fleet mobility, and remote work scenarios. However, commercial buyers and fleet operators often face a fundamental question: How much power can a Mode 2 EV charger actually deliver safely?
1. What is a Mode 2 EV Charger?
According to the international IEC 61851-1 and IEC 62752 standards, a Mode 2 charger refers to an AC charging system that connects an electric vehicle directly to a standard household or industrial socket outlet. Unlike Mode 1 (which lacks control communication and safety protection) or Mode 3 (fixed wallboxes/EVSEs), Mode 2 incorporates an In-Cable Control and Protection Device (IC-CPD) built directly into the charging cable assembly.
Plug-and-Play Portability
Does not require a permanently installed wallbox infrastructure. Plugs directly into standard domestic grid sockets or industrial CEE power outlets.
Active IC-CPD Safety Module
Contains embedded microcontrollers that manage Control Pilot (CP) signaling, residual current detection (RCD), and active thermal monitoring.
Versatile Power Adaptation
Configurable with regional grid plugs ranging from standard 13A single-phase domestic outlets up to 32A three-phase industrial sockets.
2. Maximum Power Delivery of Mode 2 EV Chargers
The actual electrical output of a Mode 2 charger is governed by the input current capacity, grid line voltage, and socket design standard. Based on IEC 62752 specifications, here is the power distribution across common regional plug types:
| Plug Standard / Interface | Max Input Current (In) | Voltage Supply | Max Output Power |
|---|---|---|---|
| UK 3-pin Plug (BS1363) | 13 A | 230 V (Single-Phase) | ~3.0 kW |
| Australia Plug (AS/NZS 3112) | 15 A | 230 V (Single-Phase) | ~3.6 kW |
| Schuko / CEE Camping Plug | 16 A | 230 V (Single-Phase) | ~3.7 kW |
| Blue CEE 32A Single Phase | 32 A | 230 V (Single-Phase) | ~7.4 kW |
| Red CEE 16A 5-Pin Industrial | 3 × 16 A | 400 V (Three-Phase) | ~11.0 kW |
| Red CEE 32A 5-Pin Industrial | 3 × 32 A | 400 V (Three-Phase) | ~22.0 kW |
3. Safety Architecture & Regulatory Compliance
While high-power Mode 2 portable charging is technically feasible up to 22 kW, regional electrical safety codes impose strict boundaries to prevent overheating, contact arcing, and grid imbalances:
Domestic Current Throttling
To mitigate fire risks on standard household wiring, many European and international standards restrict domestic plug charging to 10A–13A continuous output, even if the socket is rated higher.
Mandatory RCD Protection
IEC 62752 requires IC-CPD units to integrate Type A AC residual current detection (30mA) plus 6mA DC smooth residual current detection to prevent battery leakage hazards.
PEN Fault & Thermal Cut-Off
UK regulations require protective earth neutral (PEN) fault detection. Additionally, smart dual NTC sensors in the plug head continuously monitor terminal temperatures.
YDCHARGE OEM/ODM Portable Charger Solutions (Up to 22 kW)
At YDCHARGE, we engineer and manufacture fully compliant Mode 2 portable EV chargers tailored for EV accessory brands, fleet operators, and global distributors. Our hardware platforms support flexible power scaling from 3.0 kW domestic units up to 22 kW three-phase commercial chargers:
Summary: How Powerful Can Mode 2 EV Chargers Be?
- Theoretical Maximum: Up to 22 kW (3-Phase 32A industrial connection).
- Domestic Standard Range: 3.0 kW to 7.4 kW depending on regional grid phase and socket capacity.
- Safety Mandate: Must comply with IEC 62752, incorporating active IC-CPD control, Type A + 6mA DC residual protection, and thermal monitoring.
Do AC EVSE with Double Insulation Require a Protective Earth Connection and an RCD?
EVSE Regulatory Standards & Safety Architecture Is PE & RCD Required for Double-Insulated AC EVSE? An engineering breakdown comparing core technical insulation principles with [...]

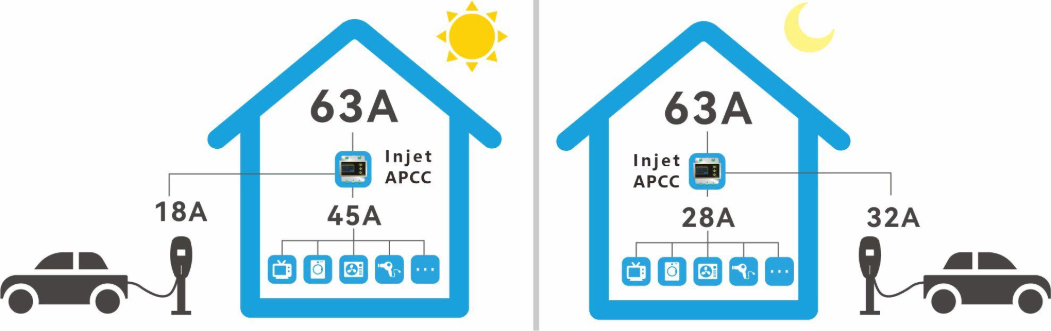

Dynamic Load Balancing (DLB): Why It’s Crucial for Your EV Charger
